The Best Industry services

Expanded Metal in All Patterns and Materials for Your Choice

In industrial production, there is a lot of waste. However, expanded metal solves the problem well. Because expanded metal is manufactured by slitting and stretching the metal sheet with a die creating different shaped holes in one step, which makes it more economical. Due to formed from a piece of metal, there are no welds or weak points, which make its structure more sounder than other type metals.

Raised Expanded Metal

Also called standard expanded metal or regular expanded metal is a finished product as it comes from the press after having been die cut and expanded. Each sheet that comes off the expander is in standard or regular form with the junctions at the strands and bonds forming a ridge surface.

Read More
Flattened Expanded Metal

Undergoes an additional cold rolling process, creating a smoother surface and a finished product that is about 5% lighter than raised expanded metal. It with versatility is key to a virtually limitless variety of applications, partitions, speaker grills, machine and windows.

Read More


Give You a Better Understanding of Expanded Metal

What expanded metal will be used for?

  • For protection, it with high strength used as fences, railings, guards and grills, covers.
  • For partition, used at homes, in offices and outdoors and in doors of various structures to make good use of space.
  • For decoration, used as stair and walkway railings at homes, facades, etc.
  • For screening and filtering, with accurate sizes used as screens in oil industry, sand & gravel plants and as filters in gas vent of vehicle or drilling for oil.
  • For ventilation and heat dissipation, with larger openings used as flooring in places high requirement on ventilation and heat dissipation, such as equipment rooms.

Why select expanded metal to replace other type metals?

  • Sound structure
  • Environmentally friendly
  • Non-slip surface
  • Fully customized
  • Economical
  • Aesthetic appeal


Products..

Aluminum Expanded Metal Facade

Decorative Expanded Metal Mesh

Architectural Expanded Metal

Expanded Copper Mesh

Micron Aluminum Expanded Metal

Expanded Metal Fencing

Expanded Security Fence

Expanded Metal Infill Panel

Expanded Metal Gate

Expanded Metal Gratings

Expanded Metal Ceiling

One Way Vision Window

Flattened Expanded Metal

Hexagonal Expanded Metal

Expanded Metal Lath

Expanded Corner Bead

Regular Expanded Metal

Heavy Type Expanded Metal

Carbon Steel Expanded Metal

Expanded Metal Steel Sheet

Stainless Steel Expanded Metal

Galvanized Expanded Metal

Mentex and Flatex Expanded Metal

Un-Galvanized Steel Expanded Metal

Expanded Metal Infill Panel in Stadium, Bridge, Home, Office Building

Expanded metal infill panel, is manufactured by slitting and stretching the metal sheet with a die creating different shaped holes in one step, which can be expanded up to 10 times its original size, creating a product that weighs 80% less while retaining its fundamental rigidity and integrity. Expanded metal infill panels mainly made of stainless steel, aluminium and low carbon steel include two types:

  • Raised expanded metal infill panels are pressed, cut and expanded, leaving sharply angled knuckles where the individual strands meet.
  • Flattened expanded metal undergoes an additional cold rolling process, creating a smoother surface and a finished product that is about 5% lighter than raised expanded metal.
Expanded metal provides many benefits over other materials. Because it is formed from a single piece of metal, there are no welds or weak points, which makes its structure sound. Unlike perforated metal, there's no waste in producing it, which makes it economical.

Expanded metal infill panel.



Specification of expanded metal infill panel:

  • Materials: stainless steel, low carbon steel, aluminium or aluminium alloy, copper, brass.
  • Hole shapes:diamond square, triangle hexagonal hole.
  • Surface treatment:PVC coated, powder coated, anodized, galvanized, polishing, etc.
  • Colors: blue, yellow, red, silver, green or as requests.
  • Thickness: 0.5 mm – 2 mm.
  • Panel width:0.5 m – 1.5 m.
  • Panel length: 0.5 m – 2 m.

Features of expanded metal infill panel:

  • Durable. It is made of corrosion resistance materials with excellent weight-to-strength ratio.
  • Attractive appearance. Various hole patterns are available.
  • Easy cutting and shearing.
  • Good ventilation. Openings permit free flow of light, heat, sound & air.
  • Little weight is ideal for decoration.

Application:

Expanded metal infill panels are used indoors and outdoors in various structures:

  • For protection
    • Used as stair and walkway railings in office buildings, stadiums, bridges, homes.
    • Fences in balconies, gardens, residential perimeters, high ways.
  • For partitions, used at homes, in offices and outdoors and in doors of various structures.
  • For decoration, used as stair and walkway railings at homes.

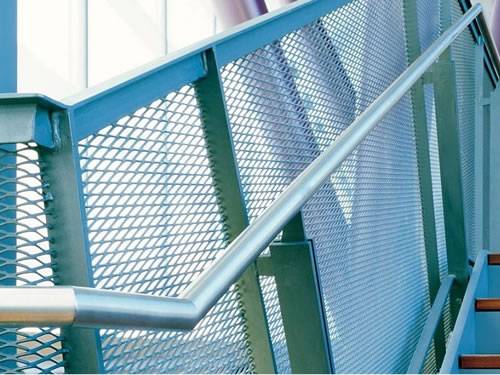

Public building expanded metal stair railing.

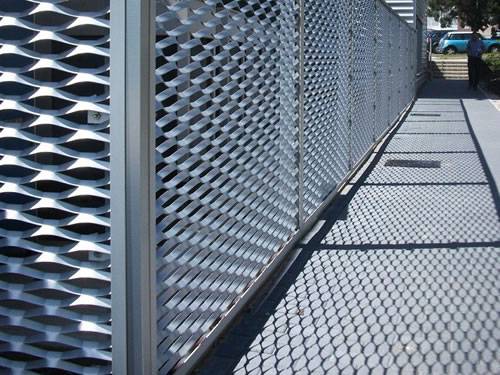

Expanded metal infill panels are used for residential area fencing.
