The Best Industry services

Expanded Metal in All Patterns and Materials for Your Choice

In industrial production, there is a lot of waste. However, expanded metal solves the problem well. Because expanded metal is manufactured by slitting and stretching the metal sheet with a die creating different shaped holes in one step, which makes it more economical. Due to formed from a piece of metal, there are no welds or weak points, which make its structure more sounder than other type metals.

Raised Expanded Metal

Also called standard expanded metal or regular expanded metal is a finished product as it comes from the press after having been die cut and expanded. Each sheet that comes off the expander is in standard or regular form with the junctions at the strands and bonds forming a ridge surface.

Read More
Flattened Expanded Metal

Undergoes an additional cold rolling process, creating a smoother surface and a finished product that is about 5% lighter than raised expanded metal. It with versatility is key to a virtually limitless variety of applications, partitions, speaker grills, machine and windows.

Read More


Give You a Better Understanding of Expanded Metal

What expanded metal will be used for?

  • For protection, it with high strength used as fences, railings, guards and grills, covers.
  • For partition, used at homes, in offices and outdoors and in doors of various structures to make good use of space.
  • For decoration, used as stair and walkway railings at homes, facades, etc.
  • For screening and filtering, with accurate sizes used as screens in oil industry, sand & gravel plants and as filters in gas vent of vehicle or drilling for oil.
  • For ventilation and heat dissipation, with larger openings used as flooring in places high requirement on ventilation and heat dissipation, such as equipment rooms.

Why select expanded metal to replace other type metals?

  • Sound structure
  • Environmentally friendly
  • Non-slip surface
  • Fully customized
  • Economical
  • Aesthetic appeal


Products..

Aluminum Expanded Metal Facade

Decorative Expanded Metal Mesh

Architectural Expanded Metal

Expanded Copper Mesh

Micron Aluminum Expanded Metal

Expanded Metal Fencing

Expanded Security Fence

Expanded Metal Infill Panel

Expanded Metal Gate

Expanded Metal Gratings

Expanded Metal Ceiling

One Way Vision Window

Flattened Expanded Metal

Hexagonal Expanded Metal

Expanded Metal Lath

Expanded Corner Bead

Regular Expanded Metal

Heavy Type Expanded Metal

Carbon Steel Expanded Metal

Expanded Metal Steel Sheet

Stainless Steel Expanded Metal

Galvanized Expanded Metal

Mentex and Flatex Expanded Metal

Un-Galvanized Steel Expanded Metal

Architectural Expanded Metal Suitable for Decoration and Ventilation

Architectural expanded metal, likes regular expanded metal, is a self-contained piece of metal which has been die cut and stretched into a diamond pattern with architectural flare that won't unravel, thus retaining its shape after years of constant use. The usage of expanded metal is everywhere, sometimes it can be used in architecture as ribbon mesh. Ribbon Mesh is an architectural expanded metal with solid bands of ribbon contoured shapes built into a metal sheet. Architectural expanded metal gives an aesthetically pleasing appearance, ensures security and adjusts to light, heat and visibility.

Aluminum expanded metal facade mesh with various colors and hole shapes.



Specification of architectural expanded metal:

  • Materials:aluminum, carbon steel, stainless steel or an ductile material
  • Hole shapes: diamond, square, round, hexagonal, etc.
  • Surface treatment: galvanized, anodized painted or powder coated.
  • Colors: white, red, blue, purple, orange, green, black, or other RAL colors.
  • Thickness: ≤ 5 mm.
  • Stem Width:0.5 mm– 50 mm
  • Package:pallet or wooden case with waterproof materials.

Features of architectural expanded metal:

  • light weight but high strength and rigidity.
  • free passage of air, light, heat, sound.
  • Adaptable to finishing processes.
  • Aesthetically appealing. Suitable for decorative and functional purposes.

Application:

Architectural expanded metals have a wide range of uses whether outdoors or indoors. It is commonly used in:

  • Architectural and security fencing
  • Windows
  • Skylight guards
  • Interior design
  • Interior partitions & barriers
  • Speaker grill
  • Drive & sidewalk gates
  • Light diffusers
  • Sign
  • Patio furniture
  • Greenhouse benches
  • Screening
  • Sunshades
  • Facades
  • Walkways
  • Mezzanines
  • Stairways
  • Ceiling panels
  • Shelving
  • Building cladding
  • Security doors

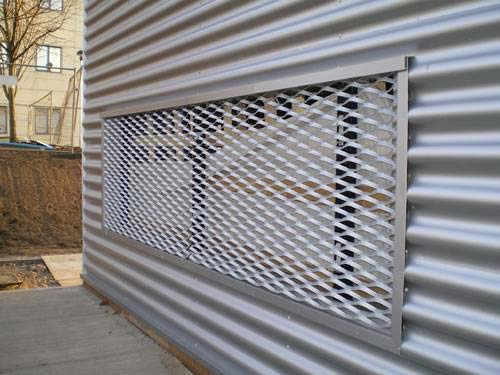

Architectural expanded metal sheets used as building for decoration.

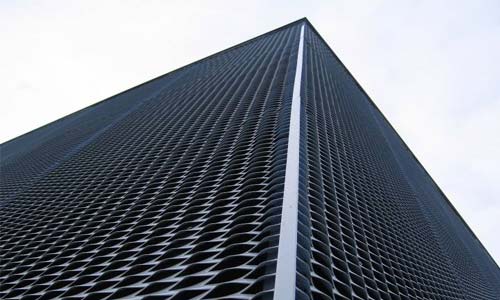

Architectural expanded metal used as museum facade for decoration and protection.
