Expanded Metal in All Patterns and Materials for Your Choice

In industrial production, there is a lot of waste. However, expanded metal solves the problem well. Because expanded metal is manufactured by slitting and stretching the metal sheet with a die creating different shaped holes in one step, which makes it more economical. Due to formed from a piece of metal, there are no welds or weak points, which make its structure more sounder than other type metals.

Raised Expanded Metal

Also called standard expanded metal or regular expanded metal is a finished product as it comes from the press after having been die cut and expanded. Each sheet that comes off the expander is in standard or regular form with the junctions at the strands and bonds forming a ridge surface.

Read More
Flattened Expanded Metal

Undergoes an additional cold rolling process, creating a smoother surface and a finished product that is about 5% lighter than raised expanded metal. It with versatility is key to a virtually limitless variety of applications, partitions, speaker grills, machine and windows.

Read More


Give You a Better Understanding of Expanded Metal

What expanded metal will be used for?

  • For protection, it with high strength used as fences, railings, guards and grills, covers.
  • For partition, used at homes, in offices and outdoors and in doors of various structures to make good use of space.
  • For decoration, used as stair and walkway railings at homes, facades, etc.
  • For screening and filtering, with accurate sizes used as screens in oil industry, sand & gravel plants and as filters in gas vent of vehicle or drilling for oil.
  • For ventilation and heat dissipation, with larger openings used as flooring in places high requirement on ventilation and heat dissipation, such as equipment rooms.

Why select expanded metal to replace other type metals?

  • Sound structure
  • Environmentally friendly
  • Non-slip surface
  • Fully customized
  • Economical
  • Aesthetic appeal


Products..

Aluminum Expanded Metal Facade

Decorative Expanded Metal Mesh

Architectural Expanded Metal

Expanded Copper Mesh

Micron Aluminum Expanded Metal

Expanded Metal Fencing

Expanded Security Fence

Expanded Metal Infill Panel

Expanded Metal Gate

Expanded Metal Gratings

Expanded Metal Ceiling

One Way Vision Window

Flattened Expanded Metal

Hexagonal Expanded Metal

Expanded Metal Lath

Expanded Corner Bead

Regular Expanded Metal

Heavy Type Expanded Metal

Carbon Steel Expanded Metal

Expanded Metal Steel Sheet

Stainless Steel Expanded Metal

Galvanized Expanded Metal

Mentex and Flatex Expanded Metal

Un-Galvanized Steel Expanded Metal

Expanded Metal Gratings Is Naturally Anti-Skid without Further Processing

Expanded metal grating, is lightweight, durable, inexpensive and provides some traction. We don't need special equipment or tools to install the gratings. It is the ideal material for industrial walkways and stair treads. It has safer tread surface and permits maximum passage of light and air. Heavy duty grating can provide savings of up to 50% over other steel grating alternatives are not uncommon. Expanded steel grating mainly has two types: light type and heavy type. The junctions of the strand and bond form a ridged surface for improved traction. Grating is formed like a truss so that every inter-connecting strand acts as a structural member distributing the load stress in several directions across the supporting frame. The angular position of the strand and the bond makes the expanded metal grating stronger in deflection than steel plate material in original form.

Expanded metal grating.



Specification of expanded metal grating:

  • Materials:stainless steel, aluminum alloy, low carbon steel.
  • Hole shapes:diamond, square, round, triangle, scale hole, hexagonal.
  • Surface treatment:galvanized, PVC-coated, painted, spray coating.
  • Colors: green, white, black, blue, silver or other RAL colors.
  • Thickness:0.5 mm – 8 mm.
  • Opening in width:2.5 mm – 50 mm.
  • Opening in length:4.5 mm – 100 mm.
  • Pakages: iron pallets or wooden cases.

Features of expanded metal grating:

  • It is made of one continuous piece of material yielding a greater strength to weight ratio.
  • There are no welded parts and the surface is naturally skid proof without further processing.
  • The pattern and openings provides a wider range of load capacity gratings to meet your exact requirements giving greater economy to your project.
  • Expanded steel grating is the most practical and economical way to assure strength, safety and non-skid surface.
  • It is easily cut into irregular shapes and can be installed quickly by welding or bolting.

Application:

Expanded metal grating is broadly applied to:

  • Treads of stairs in various places.
  • Fences for road, railway, civil building, water conservancy's construction.
  • Guards of all kinds of machines, electrical equipment, window and aquatic product's breeding.
  • Railings of walkways, stairways in many places.
  • Screens in crushed stone quarries, sand & gravel plants, iron ore mines.
  • Platforms in catwalks, building constructions, stadiums, oil drilling in the ocean.
  • Floors of outdoors balconies and places of requirement on ventilation and heat dissipation.
  • Concrete reinforcement in kinds of outdoor and indoor buildings.

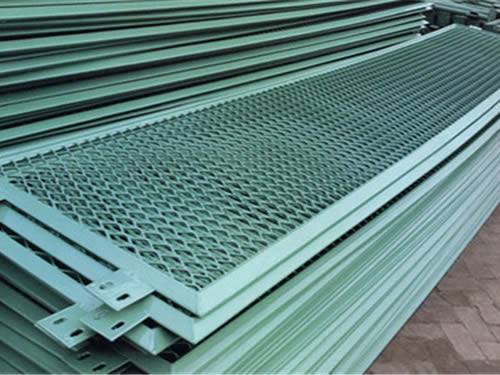

Expanded metal grating with spray coating surface treatment can improved corrosion resistance.

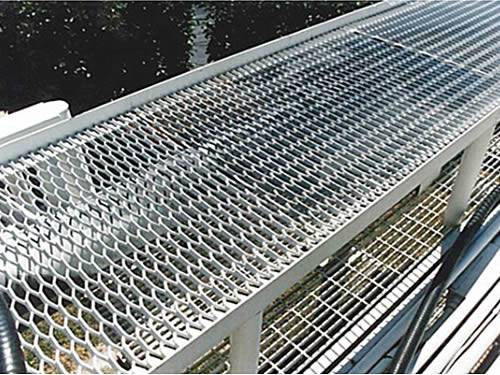

Expanded metal gate with metal tubes can reinforce strength.Regular expanded metal grating with non-slip surface can increase friction.
