Expanded Metal in All Patterns and Materials for Your Choice

In industrial production, there is a lot of waste. However, expanded metal solves the problem well. Because expanded metal is manufactured by slitting and stretching the metal sheet with a die creating different shaped holes in one step, which makes it more economical. Due to formed from a piece of metal, there are no welds or weak points, which make its structure more sounder than other type metals.

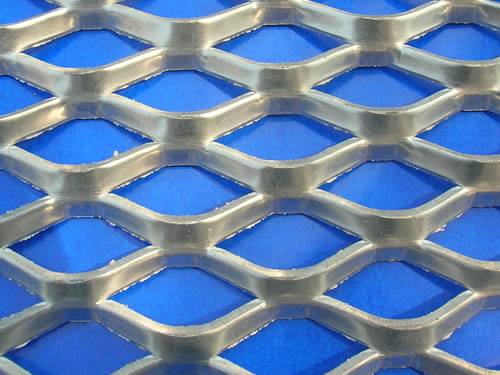

Raised Expanded Metal

Also called standard expanded metal or regular expanded metal is a finished product as it comes from the press after having been die cut and expanded. Each sheet that comes off the expander is in standard or regular form with the junctions at the strands and bonds forming a ridge surface.

Read More

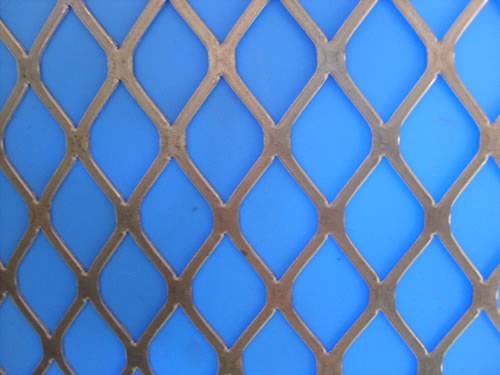

Flattened Expanded Metal

Undergoes an additional cold rolling process, creating a smoother surface and a finished product that is about 5% lighter than raised expanded metal. It with versatility is key to a virtually limitless variety of applications, partitions, speaker grills, machine and windows.

Read More


Give You a Better Understanding of Expanded Metal

What expanded metal will be used for?

  • For protection, it with high strength used as fences, railings, guards and grills, covers.
  • For partition, used at homes, in offices and outdoors and in doors of various structures to make good use of space.
  • For decoration, used as stair and walkway railings at homes, facades, etc.
  • For screening and filtering, with accurate sizes used as screens in oil industry, sand & gravel plants and as filters in gas vent of vehicle or drilling for oil.
  • For ventilation and heat dissipation, with larger openings used as flooring in places high requirement on ventilation and heat dissipation, such as equipment rooms.

Why select expanded metal to replace other type metals?

  • Sound structure
  • Environmentally friendly
  • Non-slip surface
  • Fully customized
  • Economical
  • Aesthetic appeal


Products..

Aluminum Expanded Metal Facade

Decorative Expanded Metal Mesh

Architectural Expanded Metal

Expanded Copper Mesh

Micron Aluminum Expanded Metal

Expanded Metal Fencing

Expanded Security Fence

Expanded Metal Infill Panel

Expanded Metal Gate

Expanded Metal Gratings

Expanded Metal Ceiling

One Way Vision Window

Flattened Expanded Metal

Hexagonal Expanded Metal

Expanded Metal Lath

Expanded Corner Bead

Regular Expanded Metal

Heavy Type Expanded Metal

Carbon Steel Expanded Metal

Expanded Metal Steel Sheet

Stainless Steel Expanded Metal

Galvanized Expanded Metal

Mentex and Flatex Expanded Metal

Un-Galvanized Steel Expanded Metal

Galvanized Expanded Metal Sheet with Higher Corrosion Resistance

Galvanized expanded metal,sheet has higher corrosion resistance than expanded metal sheet without surface treatment. Galvanized refers to a process that covers mild steel with a layer of zinc to provide good corrosion resistance. Galvanized expanded sheet metal is a very common structural material used in the automotive industry, construction, bridges, frames, electrical towers, signs, air conditioning systems, appliance parts, high strength cables and many other uses. Galvanized metal is a great choice when low cost and relatively high strength are required.

Galvanized expanded metal sheet with many beautiful hole shapes can be used for decoration indoors..



Specification of Galvanized expanded metal:

  • Materials: stainless steel, carbon steel, aluminum, nickel, Al-Mg alloy, copper.
  • Hole shapes: diamond, square, round, hexagonal, architectural and decorative patterns.
  • Surface treatment:PVC coated, galvanized, epoxy resin, anodized, powder coated.
  • Overall Thikness:7.9248 mm.
  • Diamond opening: 30.1752 mm × 63.5 mm.
  • Strand width:3.6576 mm.
  • Strand thikness:3.429 mm.
  • Strand length/wide: 1219.2 mm × 2438.4 mm.
  • Packages:wrapped by waterproof paper in pallets or in cartons.

Recommended specification of galvanized expanded metal sheet:

  • Overall thickness : 7.9248 mm.
  • Model: regular mesh.
  • Overall diamond size : 405.384 × 914.4 mm.
  • Diamond opening : 30.1752 mm × 63.5 mm.
  • Strand size width : 3.6576 mm.
  • Strand size thick : 3.429 mm.
  • Standard length/wide:1219.2 mm × 2438.4 mm/ (1200 × 2400mm)/sheet.

Features of Galvanized expanded metal:

  • Solid. The mesh being formed from a single piece of metal.
  • Durability. Higher Corrosion resistance with galvanized surface.
  • Environment friendly. No wasteful of material.
  • Expanded metal premise free flow of light, heat, sound and air.
  • Screening. Practical and effective light filtration.
  • Decoration. Available in a variety of mesh configurations.
  • It is easily fabricated, finished, installed and formed.

Application:

  • Architectural applications, such as chimney caps, concrete reinforcement, and used commonly in conjunction with sheet metal projects.
  • High corrosion resistance in chemical industry, such as metallurgy, medicine, paper making, filtration, aerospace, petroleum.
  • Protection for the meshes for high grade sound box, animal guards, breeding.
  • Decorating for making the crafts, large venues both inside and outside decorative.
alvanized expanded metal sheet with hexagonal holes is ideal for decorating facades.

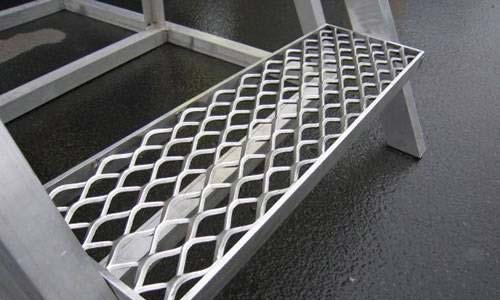

Heavy duty galvanized expanded metal sheet with flattened surface can be used for screening stones, coal, sand.
