Expanded Metal in All Patterns and Materials for Your Choice

In industrial production, there is a lot of waste. However, expanded metal solves the problem well. Because expanded metal is manufactured by slitting and stretching the metal sheet with a die creating different shaped holes in one step, which makes it more economical. Due to formed from a piece of metal, there are no welds or weak points, which make its structure more sounder than other type metals.

Raised Expanded Metal

Also called standard expanded metal or regular expanded metal is a finished product as it comes from the press after having been die cut and expanded. Each sheet that comes off the expander is in standard or regular form with the junctions at the strands and bonds forming a ridge surface.

Read More
Flattened Expanded Metal

Undergoes an additional cold rolling process, creating a smoother surface and a finished product that is about 5% lighter than raised expanded metal. It with versatility is key to a virtually limitless variety of applications, partitions, speaker grills, machine and windows.

Read More


Give You a Better Understanding of Expanded Metal

What expanded metal will be used for?

  • For protection, it with high strength used as fences, railings, guards and grills, covers.
  • For partition, used at homes, in offices and outdoors and in doors of various structures to make good use of space.
  • For decoration, used as stair and walkway railings at homes, facades, etc.
  • For screening and filtering, with accurate sizes used as screens in oil industry, sand & gravel plants and as filters in gas vent of vehicle or drilling for oil.
  • For ventilation and heat dissipation, with larger openings used as flooring in places high requirement on ventilation and heat dissipation, such as equipment rooms.

Why select expanded metal to replace other type metals?

  • Sound structure
  • Environmentally friendly
  • Non-slip surface
  • Fully customized
  • Economical
  • Aesthetic appeal


Products..

Aluminum Expanded Metal Facade

Decorative Expanded Metal Mesh

Architectural Expanded Metal

Expanded Copper Mesh

Micron Aluminum Expanded Metal

Expanded Metal Fencing

Expanded Security Fence

Expanded Metal Infill Panel

Expanded Metal Gate

Expanded Metal Gratings

Expanded Metal Ceiling

One Way Vision Window

Flattened Expanded Metal

Hexagonal Expanded Metal

Expanded Metal Lath

Expanded Corner Bead

Regular Expanded Metal

Heavy Type Expanded Metal

Carbon Steel Expanded Metal

Expanded Metal Steel Sheet

Stainless Steel Expanded Metal

Galvanized Expanded Metal

Mentex and Flatex Expanded Metal

Un-Galvanized Steel Expanded Metal

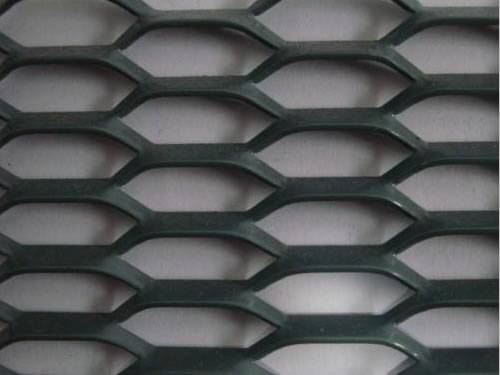

Hexagonal Expanded Metal for Protection, Decoration, Obstruction, Ventilation

Hexagonal expanded metal has the highest open area percentage among expanded metals, around 80%. Holes are arranged in a staggered pattern so that the midsection of one hole is in line with the top edge of the adjacent hole. We can provide kinds of sizes hexagonal expanded metal for customers. Hexagonal expanded metal which offers much stronger property compared with diamond patterns usually applies to heavy type expanded metal mesh in architectural load-bearing applications, such as facades, roofs, fences, gratings, steps, walkways, placards.

Aluminum hexagonal expanded metal is cut to fit easily..



Specification of Hexagonal expanded metal:

  • Materials: stainless steel, aluminum nickel, carbon steel, copper.
  • Hole shapes: galvanized, PVC coated, hot dip, powder coated, anodized.
  • Surface treatment:PVC coated, galvanized, epoxy resin, anodized, powder coated.
  • Colors: black, green, white, black, blue, silver or other RAL colors.
  • Thikness:0.5 mm – 8 mm.
  • Width:600mm – 2400 mm.
  • Hole width:2.5 mm – 50 mm
  • Hole length:4.5mm – 100 mm.

Features of Hexagonal expanded metal:

  • Security. With High strength-to-weight ratio.
  • Aesthetic appeal. Diversity of patterns, gauges and materials.
  • Pressure equalization and control Highest percentages of open areas.
  • Ventilation of air, light, sound, gases.
  • Screening of fluids.
  • Easy to install.Ease of fabrication.
  • Economical

Application:

Hexagonal expanded metal mainly as heavy expanded metal are used in step mesh of oil tanks, working platforms, boilers, mine well, automobile vehicles, big ships, facades, roofs, fences, walkways; guarding of machines, making of security windows, road isolation, wall decoration; used with concrete, in buildings and construction, making of arts and crafts and as noise barrier for sound insulation or blinds for obstruction.

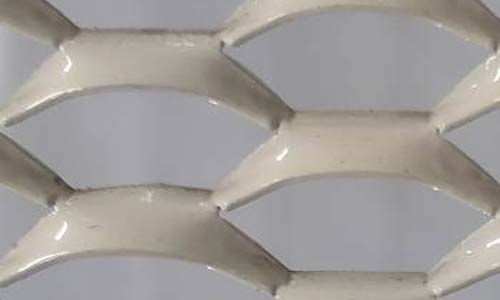

PVC coated surface hexagonal expand metal.
Anti-corrosive Durable and economical High visibility and guarding properties Low wind resistance Good ventilation
