Expanded Metal in All Patterns and Materials for Your Choice

In industrial production, there is a lot of waste. However, expanded metal solves the problem well. Because expanded metal is manufactured by slitting and stretching the metal sheet with a die creating different shaped holes in one step, which makes it more economical. Due to formed from a piece of metal, there are no welds or weak points, which make its structure more sounder than other type metals.

Raised Expanded Metal

Also called standard expanded metal or regular expanded metal is a finished product as it comes from the press after having been die cut and expanded. Each sheet that comes off the expander is in standard or regular form with the junctions at the strands and bonds forming a ridge surface.

Read More
Flattened Expanded Metal

Undergoes an additional cold rolling process, creating a smoother surface and a finished product that is about 5% lighter than raised expanded metal. It with versatility is key to a virtually limitless variety of applications, partitions, speaker grills, machine and windows.

Read More


Give You a Better Understanding of Expanded Metal

What expanded metal will be used for?

  • For protection, it with high strength used as fences, railings, guards and grills, covers.
  • For partition, used at homes, in offices and outdoors and in doors of various structures to make good use of space.
  • For decoration, used as stair and walkway railings at homes, facades, etc.
  • For screening and filtering, with accurate sizes used as screens in oil industry, sand & gravel plants and as filters in gas vent of vehicle or drilling for oil.
  • For ventilation and heat dissipation, with larger openings used as flooring in places high requirement on ventilation and heat dissipation, such as equipment rooms.

Why select expanded metal to replace other type metals?

  • Sound structure
  • Environmentally friendly
  • Non-slip surface
  • Fully customized
  • Economical
  • Aesthetic appeal


Products..

Aluminum Expanded Metal Facade

Decorative Expanded Metal Mesh

Architectural Expanded Metal

Expanded Copper Mesh

Micron Aluminum Expanded Metal

Expanded Metal Fencing

Expanded Security Fence

Expanded Metal Infill Panel

Expanded Metal Gate

Expanded Metal Gratings

Expanded Metal Ceiling

One Way Vision Window

Flattened Expanded Metal

Hexagonal Expanded Metal

Expanded Metal Lath

Expanded Corner Bead

Regular Expanded Metal

Heavy Type Expanded Metal

Carbon Steel Expanded Metal

Expanded Metal Steel Sheet

Stainless Steel Expanded Metal

Galvanized Expanded Metal

Mentex and Flatex Expanded Metal

Un-Galvanized Steel Expanded Metal

Carbon Steel Expanded Metal for Ventilation, Construction, Reinforcement, Isolation

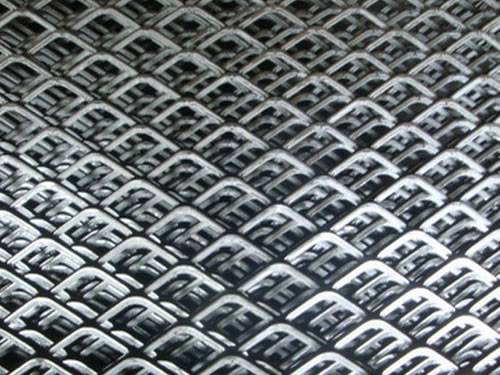

Carbon steel expanded metal, is found in many fields. And it s carbon steel expanded metal is the most economical expanded mesh among the metal materials. Made from a sheet of carbon steel that is uniformly slit and stretched, our product is available in small, medium and heavy type expanded metal mesh, with openings in the shapes of diamond, hexagon and square. The openings in the sheet allow for the passage of light, air, heat and sound. The strands and bonds of the bindings add strength, rigidity and resist unraveling. We can serve several of expanded patterns for customers.

Fattened heavy duty carbon steel expanded metal with durable structure can be used as step mesh working platform.



Specification of carbon steel expanded metal:

  • Materials: carbon steel, low carbon steel, iron, aluminum.
  • Hole shapes: diamond, hexagonal, square or special shapes.
  • Surface treatment: anodized, powder coated, PVDF, spray painted,
  • Colors: white, red, blue, black, or as requests.
  • Long way of opening:12.5 mm – 200 mm.
  • Short way of opening:5 mm – 80 mm
  • Sheet width:≤ 3.4 mm.
  • LWD:≤ 300 mm.
  • SWD:≤ 120 mm.
  • Thikness: 0.5 mm – 8 mm.
  • Width:600mm – 2400 mm.
  • Packages:pallet or wooden case with waterproof materials.

Features of carbon steel expanded metal:

  • Durable. It has excellent corrosion resistance.
  • Safety. With stable structure , anti-skid surface and super strong bearing capacity.
  • Decoration. Diversity of graceful shapes are available.
  • It is easily cutting and shearing.
  • It is very economical in aspect of transporting and using.

Application:

  • Carbon steel expanded metals are widely used as step mesh working platform, corridor and walking road for heavy model equipment, automobile vehicles, petroleum and mine well.
  • Also serve as fences for highway, rode and studio.
  • It can be used with concrete in buildings and construction; sometimes it is made of arts and crafts.
Carbon steel expanded metal with being easy to cutting and shearing, which makes it convenient in using.
Carbon steel expanded metal with light weight various attractive hole shapes can be used for decoration.
